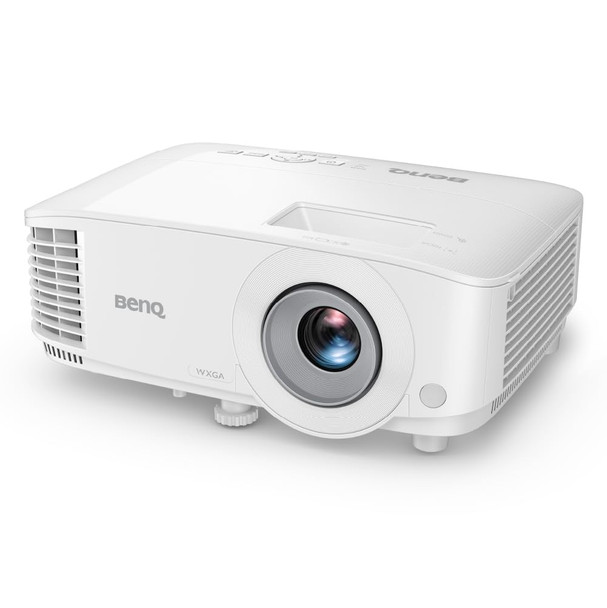

BenQ MW560C WXGA 4000 ANSI Lumens DLP Projector White | MW560C
The BenQ MW560C WXGA 4000 ANSI Lumens DLP Projector White | MW560C is a business and education projector designed for classrooms, meeting rooms, presentations, and training spaces. It features WXGA 1280 × 800 resolution, 4000 ANSI lumens brightness, 20,000:1 contrast ratio, DLP projection technology, SmartEco power saving, up to 15,000 hours lamp life in LampSave mode, HDMI connectivity, and a built-in 10W speaker.
Key Features:
• 4000 ANSI Lumens Brightness: Delivers clear projection for meeting rooms and classrooms.
• WXGA Resolution: 1280 × 800 resolution with 16:10 aspect ratio for presentations, documents, and learning content.
• 20,000:1 Contrast Ratio: Helps improve text clarity and image depth during presentations.
• DLP Projection Technology: Provides reliable projection performance with sharp image detail.
• SmartEco Power Saving: Helps reduce lamp power usage while maintaining presentation quality.
• Up to 15000 Hours Lamp Life: LampSave mode extends lamp life for long-term use.
• Auto Vertical Keystone: Adjusts vertical image alignment by ±30° for easier setup.
• Multiple Picture Modes: Includes Bright, Presentation, Spreadsheet, Infographic, sRGB, User modes, and 3D mode.
• HDMI & VGA Connectivity: Supports HDMI, VGA, USB, RS232, audio in, and audio out connections.
• Built-in 10W Speaker: Integrated speaker supports audio playback without requiring external speakers.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | BenQ |
| Model | MW560C |
| Product Type | Business & Education Projector |
| Color | White |
| Projection System | DLP |
| Native Resolution | WXGA 1280 × 800 |
| Native Aspect Ratio | 16:10 |
| Brightness | 4000 ANSI Lumens |
| Contrast Ratio | 20,000:1 |
| Display Color | 30-bit, 1.07 Billion Colors |
| Light Source | Lamp |
| Lamp Life | Normal 6000 hrs, ECO 10000 hrs, SmartEco 10000 hrs, LampSave 15000 hrs |
| Throw Ratio | 1.55–1.7 |
| Zoom Ratio | 1.1x |
| Lens | F/# 2.56–2.68, f 22–24.1mm |
| Keystone Correction | Auto Vertical ±30° |
| Picture Modes | 3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2 |
| Resolution Support | VGA 640 × 480 to WUXGA_RB 1920 × 1200 |
| HDMI | HDMI 1.4a / HDCP 1.4 |
| Connectivity | HDMI, VGA, USB-A, Mini USB-B, RS232, Audio In, Audio Out |
| Speaker | 1 × 10W |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | 260W Typical |
| Noise Level | 34dB Normal / 29dB Eco |
| Dimensions | 296 × 120 × 221mm |
| Weight | 2.3kg |
| Recommended Use | Classroom, meeting room, office, training room, business presentations |
