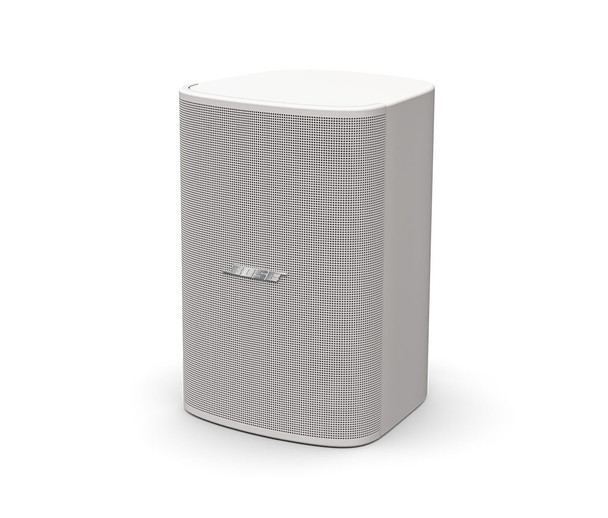

Bose Professional DesignMax DM5SE loudspeakers White (1 pair) | 829705-0220

The Bose Professional DesignMax DM5SE is a pair of premium surface-mount installation loudspeakers engineered for commercial audio environments such as restaurants, retail stores, conference rooms, hospitality venues, and houses of worship. The speakers deliver clear and balanced sound while maintaining a compact, modern design that blends easily into interior spaces.

Each speaker uses a two-way coaxial design with a 5.25-inch woofer and a 1-inch dome tweeter integrated with Bose’s Dispersion Alignment system, providing consistent coverage and natural sound throughout the listening area.

The DM5SE includes a QuickHold U-bracket mounting system that allows fast and secure installation while enabling flexible positioning on walls or ceilings. The speaker is also IP55 rated, making it suitable for both indoor installations and protected outdoor environments.

• Model: 829705-0220
• Type: Surface-mount passive loudspeakers (pair)
• Configuration: 2-way coaxial system
• Low-Frequency Driver: 5.25″ woofer (133 mm)
• High-Frequency Driver: 1″ neodymium dome tweeter
• Frequency Range: 65 Hz – 20 kHz (-10 dB)
• Frequency Response: 73 Hz – 17 kHz (±3 dB)
• Power Handling:
• 60 W continuous
• 240 W peak
• Sensitivity: 89 dB SPL (1 W / 1 m)
• Maximum SPL: Up to 113 dB peak
• Coverage: 135° conical dispersion
• Nominal Impedance: 8 Ω (transformer bypass)
• Transformer Taps:
• 70V: 3 / 6 / 12 / 25 / 50 W
• 100V: 6 / 12 / 25 / 50 W
• Environmental Rating: IP55 weather-resistant
• Mounting: QuickHold U-bracket included
• Dimensions (per speaker): 286 × 192 × 197 mm
• Weight: ≈4.4 kg per speaker
• Color: White (paintable grille)
