UGREEN US217 — 0.5M SATA 3.0 Data Cable | Straight to 90° Angled | 6Gbps | 30797

UGREEN US217 — 0.5M SATA 3.0 Data Cable | 30797

The UGREEN SATA 3.0 Data Cable (30797) is a compact, high-speed internal cable designed for connecting hard drives, SSDs, and optical drives to your motherboard or host controller — built to deliver fast, stable data transfer in even the tightest PC builds. With a smart straight-to-90° design and SATA III speeds, it's an essential, no-fuss component for any storage upgrade or system build.

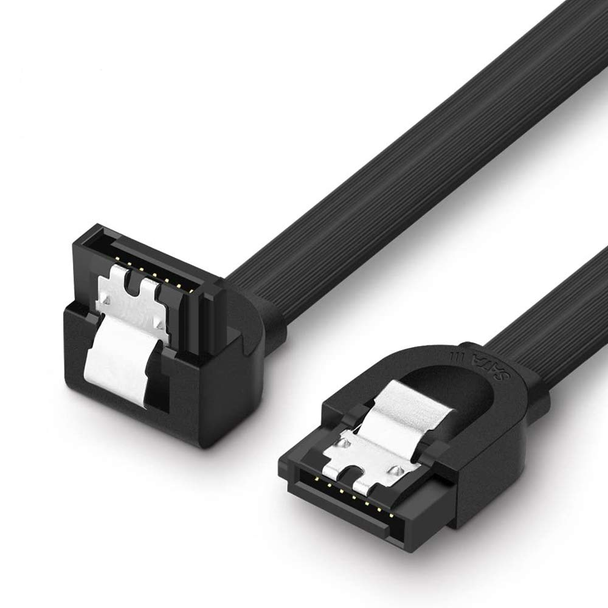

The cable's defining feature is its straight-to-90° angled connector layout — one end connects straight, while the other bends at a right angle. This design is purpose-built for tight cases, slim-ITX builds, low-profile enclosures, and stacked or horizontal drive bays, where a standard straight cable would create awkward bends or take up valuable clearance. The result is a noticeably tidier internal layout and easier cable routing behind the motherboard tray.

Supporting SATA Revision 3.0, the cable delivers data transfer speeds up to 6Gbps — twice the speed of SATA II — while remaining fully backward compatible with SATA I and SATA II devices. In practical terms, this means transferring 1GB of data in as little as 3 seconds under ideal conditions, with actual speeds depending on the connected drive's own rating. The cable is compatible with 3.5" and 2.5" HDDs, SSDs, optical drives, and DVD burners — note that it carries data only and does not provide power to the connected device.

Build quality reflects UGREEN's attention to detail at every level. The cable uses 26AWG tin-plated copper conductors for excellent conductivity and corrosion resistance, wrapped in PVC insulation with an aluminum foil shield and grounding to minimize electromagnetic interference and maintain signal integrity. Gold-plated connectors ensure low-resistance, long-lasting contact, while a double-buckle locking latch design on both ends keeps the connection firmly seated — preventing accidental disconnections during use or while working inside the case. The outer materials are flame-retardant for added safety in enclosed PC environments.

At just 0.5 metres, this cable is ideally sized for internal connections within a single case — connecting a drive bay directly to a nearby SATA port on the motherboard without excess slack to manage. For Lebanese PC builders, system integrators, and anyone upgrading storage in a compact case, the UGREEN 30797 is a small but essential component that makes internal cable management noticeably cleaner.

Key Features:

• SATA III (SATA 3.0) interface — data transfer speeds up to 6Gbps
• Straight-to-90° angled connector design — ideal for tight cases and slim-ITX builds
• Backward compatible with SATA I and SATA II devices
• Compatible with 3.5" and 2.5" HDDs, SSDs, optical drives, and DVD burners
• 26AWG tin-plated copper conductors for reliable signal transmission
• Aluminum foil shielding + grounding for reduced electromagnetic interference
• Gold-plated connectors for corrosion resistance and stable contact
• Double-buckle locking latch design on both ends for a secure, firm connection
• Flame-retardant outer materials for added safety
• Compact 0.5m length — ideal for internal single-case connections
• Data cable only — does not supply power to connected drives
