Description

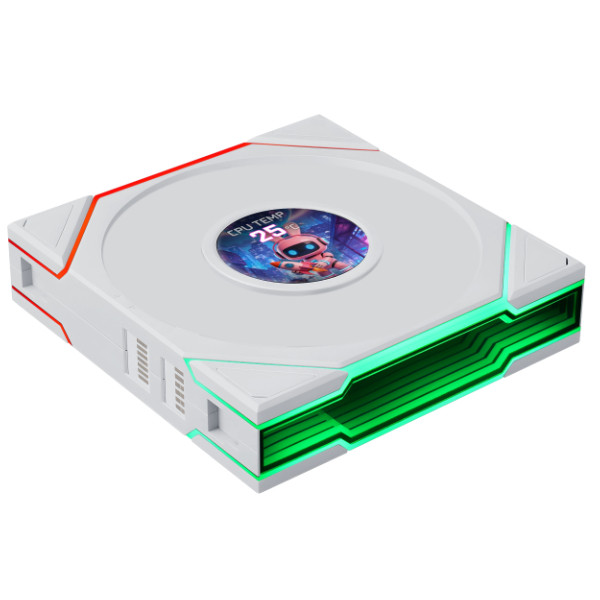

Lian Li UNI FAN TL LCD FLEX 120 White Single Pack | G9F.12TLLCD1F1W.00
The Lian Li UNI FAN TL LCD FLEX 120 White is a premium 120mm cooling fan combining strong cooling performance, customizable ARGB lighting, and an integrated 1.8-inch LCD display. This specific 12TLLCD1F1W variant is the White Single Pack with a standard/normal blade, making it suitable for conventional case and radiator airflow configurations.
The LCD features a 400 × 400 resolution and 60Hz refresh rate, with support for MP4, GIF, JPG, and PNG content for personalized system monitoring and visual themes. The fan reaches up to 1900 RPM, delivering up to 66 CFM airflow and 2.7 mmH₂O static pressure, while its Fluid Dynamic Bearing and 0.6mm blade clearance are designed for stable cooling performance. L-Connect 3, motherboard PWM/ARGB synchronization, FLEX receivers, and daisy-chain connectivity provide flexible control and simplified cable management.
• 1.8" Integrated LCD: Displays custom graphics, animations, and system information
• 400 × 400 LCD Resolution: Provides crisp visuals within the integrated fan display
• 60Hz Refresh Rate: Supports smooth animated content
• Multiple Media Formats: Supports MP4, GIF, JPG, and PNG files
• 120mm Standard Blade: Conventional airflow orientation for case or radiator cooling
• Single-Fan Pack: Includes one White UNI FAN TL LCD FLEX 120
• Up to 1900 RPM: Performance-focused fan speed range for everyday and demanding cooling
• 66 CFM Maximum Airflow: Provides strong airflow through the system
• 2.7 mmH₂O Static Pressure: Suitable for radiators and other airflow-restrictive applications
• 26 dBA Maximum Noise: Designed to balance cooling performance with controlled acoustics
• Fluid Dynamic Bearing: Supports smooth and stable fan operation
• 0.6mm Blade Clearance: Tight blade-to-frame spacing helps improve airflow efficiency
• Infinity-Mirror ARGB Lighting: Provides Lian Li's signature layered lighting appearance
• 26 Integrated LEDs: Delivers customizable ARGB illumination
• Three Control Methods: Supports wireless themes, USB LCD customization, and motherboard control
• L-Connect 3 Support: Provides software control for fan, lighting, and LCD customization
• Motherboard PWM Support: Enables fan-speed control through compatible motherboard headers
• Motherboard ARGB Sync: Supports compatible 5V ARGB lighting ecosystems
• Daisy-Chain Design: Multiple compatible UNI FAN units can connect together with reduced cable clutter
• LCD FLEX Receiver Included: Provides the required connection interface for this single-pack LCD fan
• White Finish: Designed for white and light-themed PC builds
| Specification | Details |
|---|---|
| Brand | Lian Li |
| Series | UNI FAN TL LCD FLEX |
| Model | 12TLLCD1F1W |
| Product Code / SKU | G9F.12TLLCD1F1W.00 |
| Product Type | LCD ARGB PC Cooling Fan |
| Pack Type | Single Pack |
| Fan Quantity | 1 |
| Color | White |
| Blade Type | Standard / Normal Blade |
| Fan Size | 120 mm |
| Fan Dimensions | 120 × 124 × 28 mm |
| Material | PBT / PA66 |
| LCD Display | Yes |
| LCD Size | 1.8 Inch |
| LCD Resolution | 400 × 400 Pixels |
| LCD Refresh Rate | 60Hz |
| Supported LCD Media | MP4 / GIF / JPG / PNG |
| Rated Voltage | 12V DC |
| Fan Speed | 0 / 350-1900 RPM |
| Maximum Airflow | 66 CFM |
| Maximum Static Pressure | 2.7 mmH₂O |
| Maximum Acoustic Noise | 26 dBA |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Operating Voltage | DC 12V |
| Input Power | 5.4W |
| Lighting Type | ARGB |
| LED Count | 26 LEDs |
| Lighting Design | Infinity Mirror ARGB |
| PWM Fan Control | Yes |
| Motherboard ARGB Sync | Yes |
| Daisy-Chain Support | Yes |
| L-Connect 3 Support | Yes |
| L-Wireless Controller Included | No |
| Included Receiver | 1 × LCD FLEX Receiver |
| Included USB Cable | 1 × 9-Pin USB Cable |
| Included ARGB Cable | 1 × 5V 3-Pin ARGB Cable |
