Description

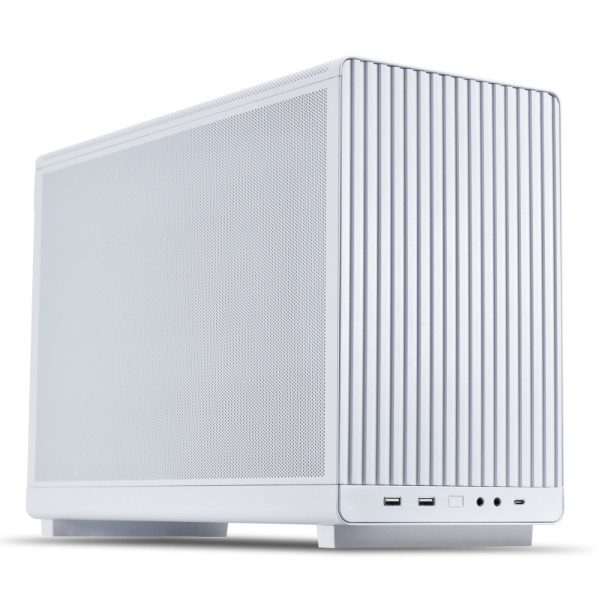

Lian Li A3 Mesh Micro-ATX PC Case White | G99.A3W.00
The Lian Li A3-mATX White is a compact 26.3L micro form factor PC case developed in collaboration with DAN Cases, combining a minimal footprint with extensive hardware compatibility. Despite its compact size, it supports Micro-ATX and Mini-ITX motherboards, graphics cards up to 415mm long, CPU coolers up to 165mm high, and ATX, SFX, or SFX-L power supplies.
Designed around flexible component placement, the A3-mATX supports up to a 360mm radiator and as many as 10 × 120mm fans, with multiple radiator mounting positions across the top, side, and bottom. Steel mesh top and side panels promote airflow, while removable exterior panels, a relocatable PSU bracket, included GPU anti-sag support, and a removable bottom dust filter simplify building and maintenance.
• Compact 26.3L Design: Micro form factor chassis that maintains broad hardware compatibility
• Micro-ATX & Mini-ITX Support: Suitable for compact gaming, workstation, and general-purpose PC builds
• Up to 415mm GPU Support: Accommodates large high-performance graphics cards
• 4 Expansion Slots: Provides room for thick multi-slot GPUs
• 165mm CPU Cooler Clearance: Supports a wide range of tower-style CPU air coolers
• 360mm Radiator Support: Allows high-performance liquid cooling configurations
• Up to 10 × 120mm Fans: Extensive airflow potential for a compact chassis
• Steel Mesh Panels: Top and side mesh sections provide direct ventilation to internal components
• Flexible PSU Support: Compatible with ATX, SFX, and SFX-L power supplies up to 220mm
• Relocatable PSU Mounting: PSU positioning can be adjusted to suit different component layouts
• ATX PSU Offset Bracket: Helps provide additional GPU clearance in supported PSU positions
• GPU Anti-Sag Bracket Included: Helps keep long graphics cards properly aligned
• Flexible Storage Support: Multiple mounting positions for 2.5-inch SSDs and a 3.5-inch HDD
• Tool-Free Exterior Panel Removal: Improves access during installation and cable management
• Bottom Dust Filter: Helps reduce dust entering through the lower ventilation area
• Modern Front I/O: Includes USB Type-A, USB Type-C, microphone, and HD audio connections
• DAN Cases Collaboration: Designed with Daniel Hansen of DAN Cases and manufactured by Lian Li
| Specification | Details |
|---|---|
| Brand | Lian Li |
| Series | A3-mATX |
| Model | A3-mATX White |
| Product Code / SKU | G99.A3W.00 |
| Product Type | Micro Form Factor PC Case |
| Color | White |
| Case Capacity | 26.3L |
| Case Material | Steel |
| Motherboard Support | Micro-ATX / Mini-ITX |
| Expansion Slots | 4 |
| Maximum GPU Length | 415 mm |
| Maximum CPU Cooler Height | 165 mm |
| PSU Support | ATX / SFX / SFX-L |
| Maximum PSU Length | 220 mm |
| Top Fan Support | 3 × 120 mm |
| Side Fan Support | 3 × 120 mm / 2 × 140 mm |
| Bottom Fan Support | 3 × 120 mm |
| Rear Fan Support | 1 × 120 mm |
| Maximum 120mm Fan Capacity | Up to 10 |
| Top Radiator Support | 360 / 240 mm |
| Side Radiator Support | 360 / 280 / 240 mm |
| Bottom Radiator Support | 240 mm / 360 mm with Bottom Fan Configuration |
| Drive Support - Tray | 2 × 2.5" SSD |
| Drive Support - Bottom | 1 × 2.5" SSD or 1 × 3.5" HDD |
| Front I/O - USB Type-A | 2 × USB 3.0 |
| Front I/O - USB Type-C | 1 × USB 3.1 Type-C |
| Audio | 1 × Mic / 1 × HD Audio |
| Power Button | Yes |
| Dust Filter | 1 × Bottom |
| GPU Anti-Sag Bracket | Included |
| Exterior Panel Design | Steel Mesh Top / Side Panels |
| Dimensions (D × W × H) | 443 × 194 × 321.5 mm |
| Dimensions Without Legs | 443 × 194 × 306 mm |
