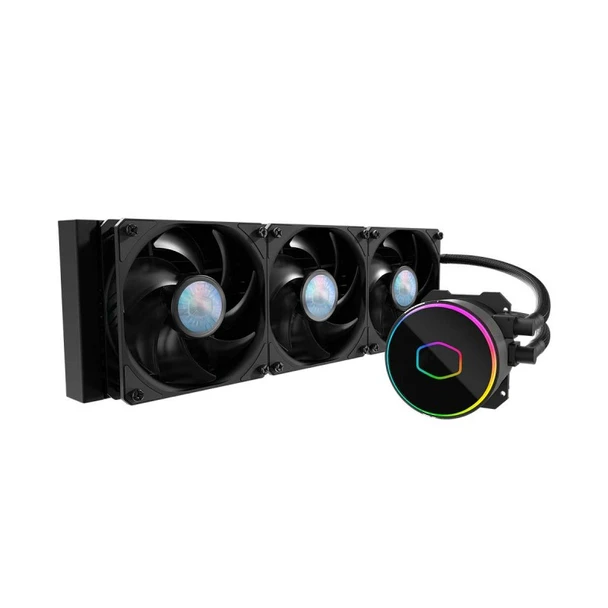

Cooler Master MasterLiquid ML360 Vivid 360mm AIO CPU Cooler with 2" LCD & ARGB | MLY-L36M-A18PK-R1
The Cooler Master MasterLiquid ML360 Vivid is a 360mm all-in-one liquid CPU cooler designed to combine strong cooling performance with real-time system monitoring and extensive customization. Its integrated 2-inch LCD display can show system information, custom images, logos, and animations, while the surrounding pump ring features 12 individually addressable RGB LEDs for personalized lighting through Cooler Master MasterPlus+ software.
Cooling is handled by Cooler Master’s 3rd Gen Dual Chamber Pump, a widened aluminum radiator, and three SickleFlow 120 PWM fans. The fans operate from 650 to 1800 RPM, delivering up to 62 CFM airflow and 2.5 mmH₂O static pressure, while the 394mm radiator provides expanded cooling surface area for demanding desktop processors.
• 360mm AIO Liquid Cooler: Designed for high-performance desktop CPU cooling
• 2" LCD Display: Shows system information, custom graphics, logos, and animations
• Smart System Monitoring: Displays temperatures, voltages, fan speeds, and other system information
• 12-LED ARGB Pump Ring: Individually addressable lighting around the pump display
• MasterPlus+ Software: Controls LCD content, monitoring information, and ARGB lighting
• 3rd Gen Dual Chamber Pump: Optimized pump design for improved cooling performance
• Expanded Radiator Surface: Widened internal water channels increase cooling surface area
• 3 × SickleFlow 120 Fans: Designed for strong airflow and static pressure
• 650-1800 RPM PWM Fans: Adjustable fan speed according to cooling requirements
• 62 CFM Maximum Airflow: Strong airflow through the radiator
• 2.5 mmH₂O Static Pressure: Suitable for radiator-focused cooling
• Low Pump Noise: Pump operates at less than 10 dBA
• Aluminum Radiator: Durable 394 × 119.6 × 27.2mm radiator construction
• Built-In Control: LCD and ARGB pump functionality feature integrated control hardware
• Black Finish: Designed for gaming and performance PC builds
| Specification | Details |
|---|---|
| Brand | Cooler Master |
| Series | MasterLiquid |
| Model | ML360 Vivid |
| Product Number / MPN | MLY-L36M-A18PK-R1 |
| Product Type | 360mm AIO Liquid CPU Cooler |
| Color | Black |
| LCD Display | Yes |
| LCD Size | 2 Inch |
| LCD Functions | System Monitoring / Custom Images / Logos / Animations |
| Software | Cooler Master MasterPlus+ |
| Pump Lighting | Addressable RGB |
| Pump ARGB LEDs | 12 |
| Pump Design | 3rd Gen Dual Chamber |
| Pump Dimensions | 82 × 76 × 57.8 mm |
| Pump Noise Level | <10 dBA |
| Pump Connector | 3-Pin |
| Pump Rated Voltage | 12V DC |
| Pump Power Consumption | 3.96W |
| Pump MTTF | 70,000 Hours |
| Radiator Size Class | 360 mm |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 × 119.6 × 27.2 mm |
| Included Fans | 3 × SickleFlow 120 |
| Fan Size | 120 mm |
| Fan Dimensions | 120 × 120 × 25 mm |
| Fan Lighting | Non-LED |
| Fan Speed | 650-1800 RPM ±5% |
| Maximum Airflow | 62 CFM |
| Maximum Static Pressure | 2.5 mmH₂O |
| Fan Noise Level | 8-27 dBA |
| Fan Bearing Life | 160,000 Hours |
| Fan Power Connector | 4-Pin PWM |
| Fan Rated Voltage | 12V DC |
| Fan Rated Current | 0.15A |
| Intel Socket Support | LGA 2066 / 2011-v3 / 2011 / 1200 / 1151 / 1150 / 1155 / 1156 |
| AMD Socket Support | AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 |
| Net Weight | 1.742 kg |
| Gross Weight | 2.440 kg |
Additional Information
CPU sockets: |
LGA1700 |
CPU sockets: |
LGA2066 |
CPU sockets: |
LGA2011-v3 |
CPU sockets: |
LGA2011 |
CPU sockets: |
LGA1200 |
CPU sockets: |
LGA1151 |
CPU sockets: |
LGA1150 |
CPU sockets: |
LGA1155 |
CPU sockets: |
LGA1156 |
CPU sockets: |
AM4 |
CPU sockets: |
AM3+ |
CPU sockets: |
AM3 |
CPU sockets: |
AM2+ |
CPU sockets: |
AM2 |
CPU sockets: |
FM2+ |
CPU sockets: |
FM2 |
CPU sockets: |
FM1 |
Color: |
Black |
Fan Count: |
3 |
