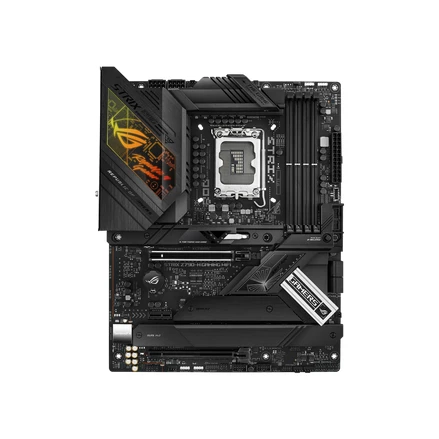

ASUS ROG Strix Z790-H Gaming WiFi Intel LGA 1700 DDR5 ATX Gaming Motherboard | 90MB1E10-M1CAY0

ASUS ROG Strix Z790-H Gaming WiFi | 90MB1E10-M1CAY0 is a high-performance Intel Z790 ATX gaming motherboard designed for powerful gaming and enthusiast PC builds. It supports 14th, 13th, and 12th Gen Intel Core processors, DDR5 memory up to 192GB, PCIe 5.0 x16 graphics, four PCIe 4.0 M.2 slots, WiFi 6E, Intel 2.5Gb Ethernet, and high-speed USB Type-C connectivity.

ASUS ROG Strix Z790-H Gaming WiFi | 90MB1E10-M1CAY0 provides a powerful foundation for high-performance gaming PCs, enthusiast desktops, and content creation systems. Built around the Intel Z790 chipset and LGA 1700 socket, it supports Intel Core 14th, 13th, and 12th Gen processors and combines advanced power delivery, cooling, expansion, and connectivity features.

The robust 16+1+2 power stage design, with power stages rated for up to 80A, dual ProCool II connectors, alloy chokes, and durable capacitors, is engineered to deliver stable power to demanding multi-core Intel processors. Large VRM heatsinks and dedicated M.2 cooling help maintain reliable performance under intensive workloads.

Four DDR5 DIMM slots support up to 192GB of memory, with speeds reaching DDR5-7800+ when overclocked. Intel XMP, ASUS OptiMem II, and ASUS Enhanced Memory Profile II provide additional options for optimizing memory performance.

Expansion includes a reinforced PCIe 5.0 x16 SafeSlot for high-performance graphics cards, an additional PCIe 4.0 x16 slot, and a PCIe 3.0 x1 slot. Storage connectivity includes four PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, providing extensive space for fast NVMe SSDs and additional storage drives.

Integrated WiFi 6E, Bluetooth 5.3, and Intel 2.5Gb Ethernet deliver high-speed wireless and wired networking. The rear I/O also includes USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, HDMI 2.1, DisplayPort 1.4, optical S/PDIF, and premium ROG SupremeFX audio.

ASUS DIY-friendly features such as PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack, Clear CMOS, Q-LED, and a pre-mounted I/O shield help simplify installation, upgrading, and troubleshooting, while Aura Sync RGB provides customizable system lighting.

• Intel Z790 Chipset: High-performance platform for compatible Intel LGA 1700 processors.
• 14th, 13th & 12th Gen Intel Support: Compatible with supported Intel Core processors using the LGA 1700 socket.
• 16+1+2 Power Stages: Robust power delivery with stages rated for up to 80A.
• DDR5 Memory: Four DIMM slots supporting up to 192GB and DDR5-7800+ OC speeds.
• PCIe 5.0 x16 SafeSlot: Reinforced high-bandwidth slot for modern graphics cards.
• Four M.2 Slots: Four PCIe 4.0 M.2 connections for high-speed NVMe storage.
• Four SATA Ports: Supports additional SATA SSDs and hard drives.
• WiFi 6E: Tri-band 2.4GHz, 5GHz, and 6GHz wireless connectivity.
• Intel 2.5Gb Ethernet: High-speed wired networking with ASUS LANGuard.
• Bluetooth 5.3: Integrated wireless connectivity for compatible peripherals.
• USB 3.2 Gen 2x2 Type-C: High-speed USB connectivity up to 20Gbps.
• ROG SupremeFX Audio: S1220A codec with Savitech SV3H712 amplifier and 7.1-channel audio.
• AI Overclocking: Intelligent CPU performance tuning.
• AI Cooling II: Automated cooling optimization and fan control.
• Aura Sync RGB: Integrated RGB and Addressable Gen 2 lighting support.
• DIY-Friendly Design: PCIe Q-Release, M.2 Q-Latch, Q-LED, BIOS FlashBack, and Clear CMOS.
