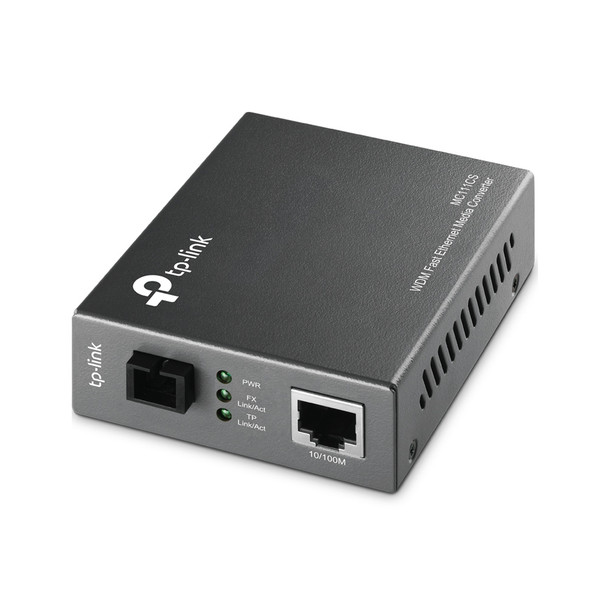

Description
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Work with MC112CS WDM single fiber media converter
- Extends fiber distance up to 20km (12.5 miles)
-
MEDIA CONVERTER & MODULE Standards and Protocols IEEE 802.3, IEEE 802.3u Basic Function Adopts WDM technology
Half/Full-Duplex transfer mode for FX port
minimize the loss caused by link failure timely
Extends fiber distance up to 20km (12.5 miles)Ports 1 x 100M SC/UPC port
1 x 10/100M RJ45 port (Auto MDI/MDIX)Wave Length 1550nm Tx/1310nm Rx WDM TX 1550nm WDM RX 1310nm Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)Network Media 100BASE-FX Single-mode Fiber LED Indicators PWR, Link/Act Dimensions (W*D*H) 3.7 x 2.9 x 1.1 in.
(95 x 73 x 27 mm)Power Supply External Power Adapter Max Power Consumption 2.49W Safety & Emission FCC, CE, RoHS
